DS82-A
Network powered speakers
Dante™ Enabled Network Audio
6” Coaxial Loudspeaker Assembly




The AMK DS82-A loudspeaker assembly is powered by a POE+ network amplifier with Dante™ input. No external power supply is required. The speaker includes a Class D amplifier which provides efficient use of power.  The assembly comes with AMK's CX 802, highly efficient 8" coaxial loudspeaker.  This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.

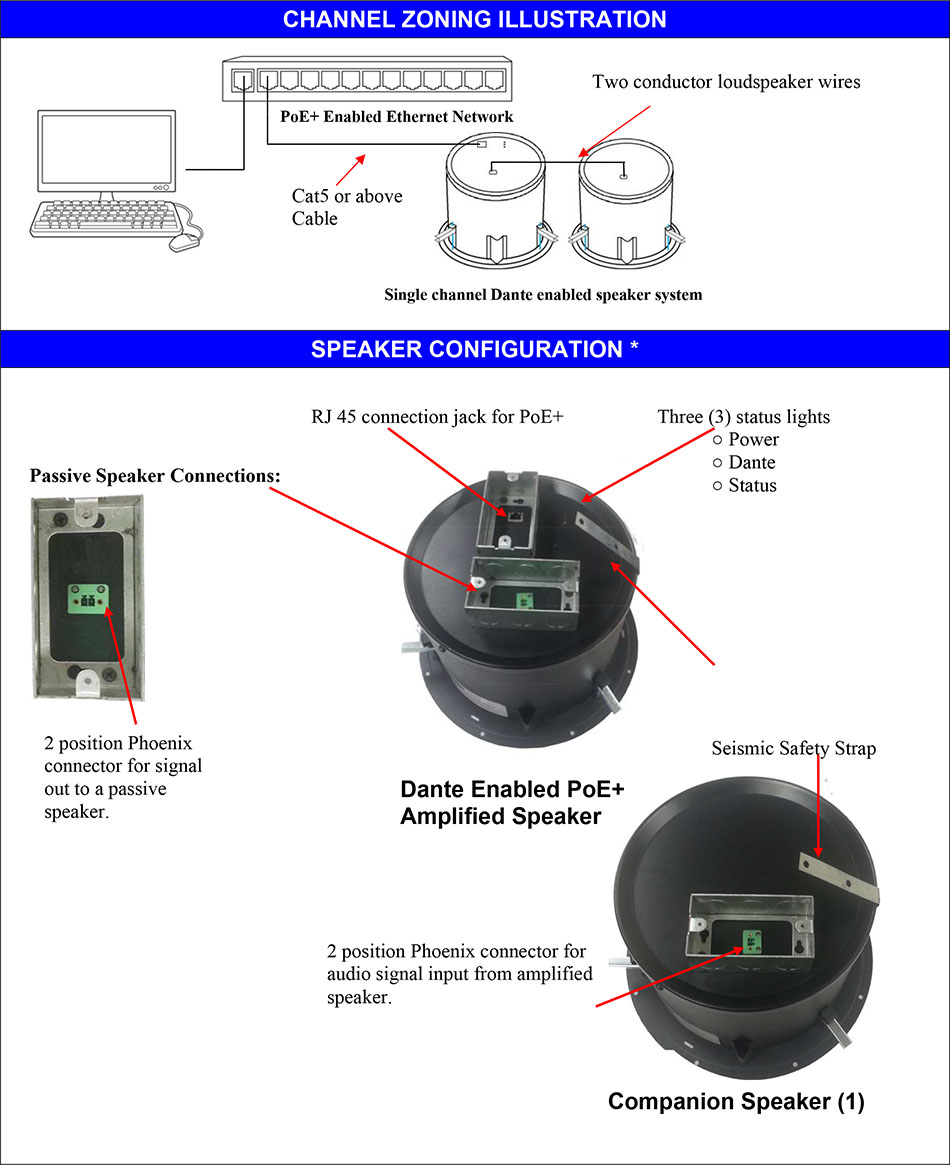

One PoE amplified speaker can power a total of (2) speakers, one active and one passive speaker.

The CX602 loudspeaker driver has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications.

This assembly can be used in wide range of projects for paging and background music applications.  The DS82-A is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.

Data / Spec Sheet Installation Manual Dealer Price
(You will need a dealer login info provided by AMK)
Other Dante Series

  Features

* Network enabled Loudspeaker by Dante

* PoE+ powered without a need for local power.

* RJ45 connection for audio from PoE+ Ethernet.

* 8" polypropylene cone with inverted rubber surround



* 1” polyamide dome tweeter

* Weather and water resistant.

* Single channel auudio for one zone

* UL 2043 List Pending
