DS62

Dante network and AES67 enabled speaker
Dante Doman Manager Ready

Channels (zones): 2



Replacing previous models:
DS62-A / DS62-A-X
DS62-B / DS62-B-X

All of AMK's Dante speakers are now
both Dante and AES67 enabled.

Data / Spec Sheet

Installation Manual

Price Quote Request

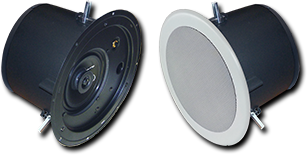

The AMK DS62 is a Dante™ and AES67 enabled audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required.

The speaker includes a Class D amplifier which provides effective use of power. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.

The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well.

The system comes with 6.5” coaxial 25W loudspeaker driver, CX602, that has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications.

One PoE+ amplified speaker can power a total of (2) speakers, one active and one passive speaker.

This assembly can be used in wide range of projects for paging and background music applications. The DS62 is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.

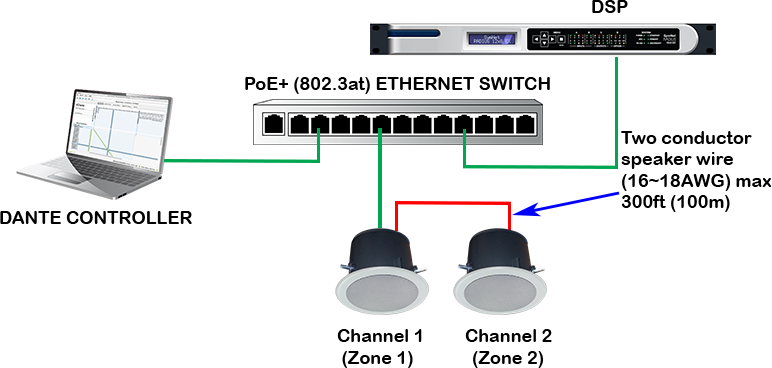

  Channel Zoning Illustration



  AMK Dante Ceiling Speaker Advantage

  *  No need to have separate dante enabled amp or I/O interface

  *  A Single RJ45 connection to main active speaker with two conductor wire connection to each of the three passive
     speakers with separate channels.

  *  Highly efficient speaker driver due to barium ferrite magnet.

  *  Cost effective simple one system solution.

  *  Dante Domain Manager Ready

  *  AES67 compatible

 System Specification
  Frequency Response   100 Hz - 20 kHz (+/- 3dB)
  Maximum SPL at 1M   102 dB
  Voice-coil diameter   1."
  Magnet   Barium Ferrite (for high efficiency of the speaker driver)

  Nominal Coverage Angle (500Hz – 4kHz Average)

  140° Conical Average
  Audio Input   Dante or AES67 Audio via Ethernet network
  Output Power   10W / Channel (5W per speaker)
  Signal to Noise Ratio   >99dB
   Power consumption   2 Watts Standby, 25 Watts Maximum
   Input connector on active speaker   RJ-45
   Maximum wire length to companion speakers   100ft at 18AWG
   PoE+   IEEE 802.3at-2009
   Audio Network System Compatibility    Dante / Dante Domain Manager / AES67
   UL Listed Enclosure   UL 2043
 Physical Speaker Data
  Tweeter   13mm polyamide hard dome
  Woofer Cone   Polypropylene
  Surround Material   Inverted rubber Surround
  Crossover Frequency   5.0 kHz
  Enclosure Depth with Handybox   8.75”
  Grille Dimension   24.0” x 24.0”
  Net weight of the speaker   16.0 lbs
  Shipping Weight (1 box of 2 speakers)   42.0 lbs
 Frequency Response

 Speaker Configuration


 Polar Responses
250 Hz
500 Hz

1 kHz
   2 kHz

3 kHz
4 kHz
8 kHz
16 kHz

 Architect's & Engineer's Specifications

The powered loudspeaker system shall be AMK DS62. The speaker shall feature Audinate / Dante™ network audio signal that broadcasts 1 channel of audio. The speaker system shall consist of a set of 2 speakers broadcasting different channels of audio for different zones.

The Ethernet network must have PoE+ to provide the power that is needed for the system.

The active unit of the system shall have one RJ-45 jack for network audio connection.

The speaker unit in the system shall be of the coaxial type with an 6.5" woofer of polypropylene, an inverted rubber surround, and a 1" polyamide soft dome tweeter mounted on a post. The transducer in the loudspeaker system shall be AMK CX 602 coaxial loudspeaker. The woofer shall have a 13 oz. (369g) Barium Ferrite magnet. The two transducer sections shall be coupled through a built-in capacitor bypass crossover.

The crossover frequency shall be at 5.0 kHz. The low frequency transducer shall have 1" (25.4mm) voice coil and the high frequency transducer shall have 0.51" (13mm) voice coil. The system shall have a frequency response of 65 Hz- 20 kHz (+/- 10dB).

The depth of all 2 enclosures shall be 8.25 inches. The rim diameter shall be 11.75”. The enclosure diameter shall be 9.25”. The depth of the enclosures shall not exceed 8.25”. The system shall include 2 tile bridges. The system shall have a metal strap for attachment to a structure for seismic protection.

The total weight of the each of the speaker enclosure, tile bridge, and grille shall not exceed 9.0 lbs.

The loudspeaker system shall be AMK Innovations model DS62.

Conforms to EIA Standards: RS-276-A, RS-278-B, RS-426-A.
