DS84

Dante and AES67 network enabled speaker
Dante Doman Manager Ready

Channels (zones): 4

Replacing previous models:
DS84-B / DS84-B-X
DS84-C / DS84-C-X

All of AMK's Dante speakers are now
both Dante and AES67 enabled.

The AMK DS84 is a Dante™ and AES67 audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required. The speaker includes a Class D amplifier which provides effective use of power. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.

The assembly comes with AMK's CX 802, highly efficient coaxial loudspeaker. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.

One PoE amplified speaker can power a total of (4) speakers, including (3) additional passive speakers, with one speaker per audio zone. The CX802 loudspeaker driver has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications.

The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well.

This assembly can be used in wide range of projects for paging and background music applications. The DS84 is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.

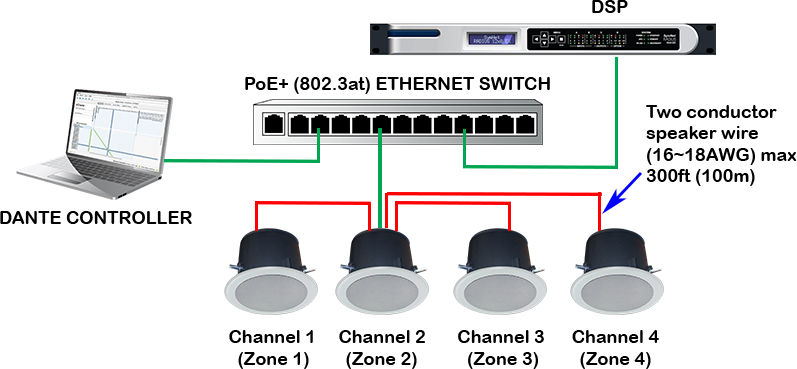

Channel Zoning Illustration

AMK Dante Ceiling Speaker Advantage
* Network enabled Loudspeaker by Dante™ * PoE+ powered without a need for local power. * RJ45 connection for audio from PoE+ Ethernet. * Weather and water resistant. * 4 Channel Audio, with each speaker having separate IP addresses * Dante Domain Manager Ready * AES67 compatible * UL 2043 Listed

System Specification
Frequency Response		50 Hz - 20 kHz (+/- 3dB)
Maximum SPL at 1M		105 dB
Voice-coil diameter		1."
Magnet		Barium Ferrite (for high efficiency of the speaker driver)
Nominal Coverage Angle (500Hz – 4kHz Average)		110° Conical Average
Audio Input		Dante Audio via Ethernet
Output Power		5W
Signal to Noise Ratio		>99dB
Power consumption		2 Watts Standby, 25 Watts Maximum
Input connector on active speaker		RJ-45
Maximum wire length to companion speakers		100ft at 18AWG
PoE+		IEEE 802.3at-2009
Audio Network System Compatibility		Dante / Dante Domain Manager / AES67
Controls		Dante™ controller software

Physical Speaker Data
Tweeter		13mm polyamide hard dome
Woofer Cone		Polypropylene
Surround Material		Inverted rubber Surround
Crossover Frequency		5.5 kHz
Enclosure Depth with Handybox		8.75”
Diameter of the Enclosure		9.25"
Diameter of the Grille		12.75"
Net weight of the speaker		10.0 lbs
Shipping Weight (2 boxes of 4 speakers)		60.0 lbs

Frequency Response


Speaker Configuration

Polar Responses
250 Hz	500 Hz	1 kHz	2 kHz
3 kHz	4 kHz	8 kHz	16 kHz
Architect's & Engineer's Specifications
The powered loudspeaker system shall be AMK DS84. The speaker shall feature Audinate / Dante™ network audio signal that broadcasts 4 channels of audio. The speaker system shall consist of a set of 4 speakers with 2 speakers for each channel of audio broadcast. The Ethernet network must have PoE+ to provide the power that is needed for the system. The active unit of the system shall have one RJ-45 jack for network audio connection. Then there shall be (3)three of the two position phoenix type (euro) connections. Each of the connections shall go the passive speakers at different zones. The transducer in the loudspeaker system shall be AMK CX 802 coaxial loudspeaker. The woofer shall have a 20 oz. Barium Ferrite magnet. The two reproducer sections shall be coupled through a built-in capacitor bypass crossover. The crossover frequency shall be at 5.5 kHz. The low frequency reproducer shall have 1" (25.4mm) voice coil and the high frequency reproducer shall have 0.51" (13mm) voice coil. The system shall have a frequency response of 55 Hz- 20 kHz (+/- 5dB). The power handling shall be 40watts at 8 ohm impedance. The sensitivity shall be 91dB at 1watt / 1meter. The depth of all 4 enclosures shall be 8.25 inches. The rim diameter shall be 11.75”. The enclosure diameter shall be 9.25”. The depth of the enclosures shall not exceed 8.25 inches. The system shall include 4 tile bridges. The system shall have a metal strap for attachment to a structure for seismic protection. The total weight of the each of the speaker enclosure, tile bridge, and grille shall not exceed 9.0 lbs. The loudspeaker system shall be AMK Innovations model DS84. Conforms to EIA Standards: RS-276-A, RS-278-B, RS-426-A.
