The AMK DS84-B-X is a Dante™ audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required.
The speaker includes a Class D amplifier which provides effective use of power. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.

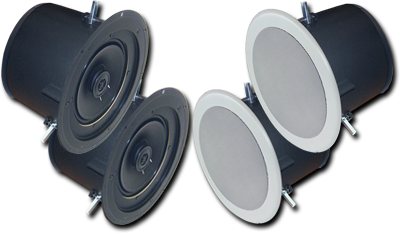

The system comes with 8” coaxial 40W loudspeaker driver, CX802, that has excellent dispersion, wide bandwidth and a smooth frequency response makes this the top choice for today’s overhead commercial applications.
One PoE+ amplified speaker can power a total of (4) speakers, including (3) additional passive speakers, with (2) speakers per audio zone.
The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well.
This assembly can be used in wide range of projects for paging and background music applications. The DS84-B-X is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.
| Channel Zoning Illustration | |||
 |
|||
| AMK Dante Ceiling Speaker Advantage | |||
|
* No need to have
separate dante enabled amp or I/O interface * A Single RJ45 connection
to main active speaker with two conductor wire
connection to each of * Dante Domain Manager Ready * AES67 compatible * UL 2043 Listed
|
|||
| System Specification | |||
| Frequency Response | 50 Hz - 20 kHz (+/- 3dB) | ||
| Maximum SPL at 1M | 105 dB | ||
| Voice-coil diameter | 1." | ||
| Magnet | Barium Ferrite (for high efficiency of the speaker driver) | ||
|
Nominal Coverage Angle (500Hz – 4kHz Average) |
110° Conical Average | ||
| Audio Input | Dante Audio via Ethernet | ||
| Output Power | 5W | ||
| Signal to Noise Ratio | >99dB | ||
| Power consumption | 2 Watts Standby, 25 Watts Maximum | ||
| Input connector on active speaker | RJ-45 | ||
| Maximum wire length to companion speakers | 100ft at 18AWG | ||
| PoE+ | IEEE 802.3at-2009 | ||
| Audio Network System Compatibility | Dante / Dante Domain Manager / AES67 | ||
| Controls | Dante™ controller software | ||
| Physical Speaker Data | |||
| Tweeter | 13mm polyamide hard dome | ||
| Woofer Cone | Polypropylene | ||
| Surround Material | Inverted rubber Surround | ||
| Crossover Frequency | 5.5 kHz | ||
| Enclosure Depth with Handybox | 8.75” | ||
| Diameter of the Enclosure | 9.25" | ||
| Diameter of the Grille | 12.75" | ||
| Net weight of the speaker | 10.0 lbs | ||
| Shipping Weight (2 boxes of 4 speakers) | 60.0 lbs | ||
| Frequency Response | |||
 |
|||
| Speaker Configuration | |||
 |
|||
| Polar Responses | |||
250 Hz |
500 Hz |
1 kHz |
2 kHz |
3 kHz |
4 kHz |
8 kHz |
16 kHz |
| Architect's & Engineer's Specifications | |||
|
The powered loudspeaker system shall be AMK DS84-B-X. The speaker shall feature Audinate / Dante™ network audio signal that broadcasts 2 channels of audio. The speaker system shall consist of a set of 4 speakers with 2 speakers for each channel of audio broadcast. The Ethernet network must have PoE+ to provide the power that is needed for the system. The active unit of the system shall have one RJ-45 jack for network audio connection. Then there shall be (3)three of the two position phoenix type (euro) connections. One of the connections goes to the passive speaker that is operating under the same channel active speaker. Two other connections shall be for the 2nd channel. The transducer in the loudspeaker system shall be AMK CX 802 coaxial loudspeaker. The woofer shall have a 20 oz. Barium Ferrite magnet. The two reproducer sections shall be coupled through a built-in capacitor bypass crossover. The crossover frequency shall be at 5.5 kHz. The low frequency reproducer shall have 1" (25.4mm) voice coil and the high frequency reproducer shall have 0.51" (13mm) voice coil. The system shall have a frequency response of 55 Hz- 20 kHz (+/- 5dB). The power handling shall be 40watts at 8 ohm impedance. The sensitivity shall be 91dB at 1watt / 1meter. The depth of all 4 enclosures shall be 8.25 inches. The rim diameter shall be 11.75”. The enclosure diameter shall be 9.25”. The depth of the enclosures shall not exceed 8.25 inches. The system shall include 4 tile bridges. The system shall have a metal strap for attachment to a structure for seismic protection. The total weight of the each of the speaker enclosure, tile bridge, and grille shall not exceed 9.0 lbs. The loudspeaker system shall be AMK Innovations model DS84-B-X. Conforms to EIA Standards: RS-276-A, RS-278-B, RS-426-A. |
|||
